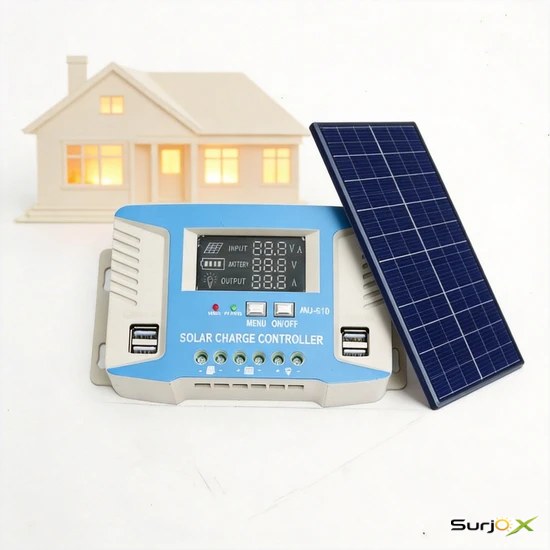

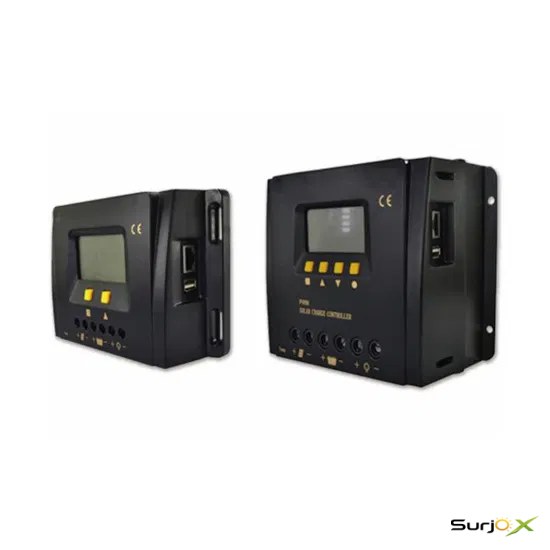

A powerful, intelligent PWM charge controller for 12V/24V solar systems, using advanced 3-stage PWM charging technology to safely charge the battery at higher currents.

Key Features

• 12V/24V automatic voltage detection
• Advanced 3-stage PWM charging
• Dual solar panel input
• Large backlit LCD display
• Adjustable charging parameters with memory retention
• Temperature compensation
• Multiple load working modes
• USB charging output (5V/2A)
• Comprehensive protection: overcharge, over-discharge, overload, short-circuit, reverse connection, surge/lightning

Technical Specifications

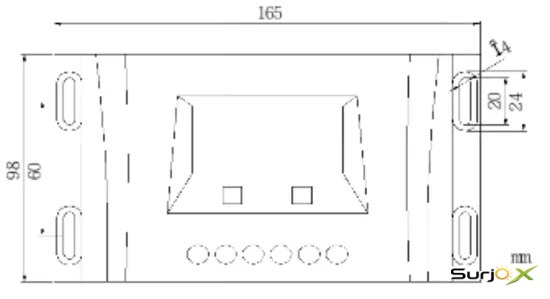

Rated Current: 50A | System Voltage: 12V/24V Auto | Max Solar Power: 650W (12V) / 1300W (24V) | USB Output: 5V/2A | Standby Consumption: ≤12mA | Operating Temperature: -20°C to +55°C | Waterproof Rating: IP32 | Body Material: ABS | Size: ~16 x 10cm

Suitable for home, off-grid, shops/offices, telecom base stations, RV, boats & rural electrification.
